Federation Bungalow II, Mosman, Sydney Australia

living and dining areas in the new extension face the garden courtyard

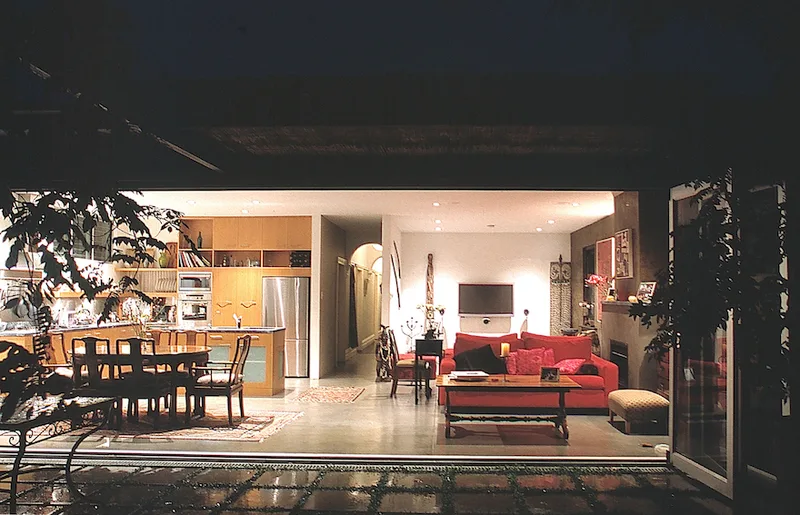

night view of the garden and living room
new rear dwelling and courtyard garden

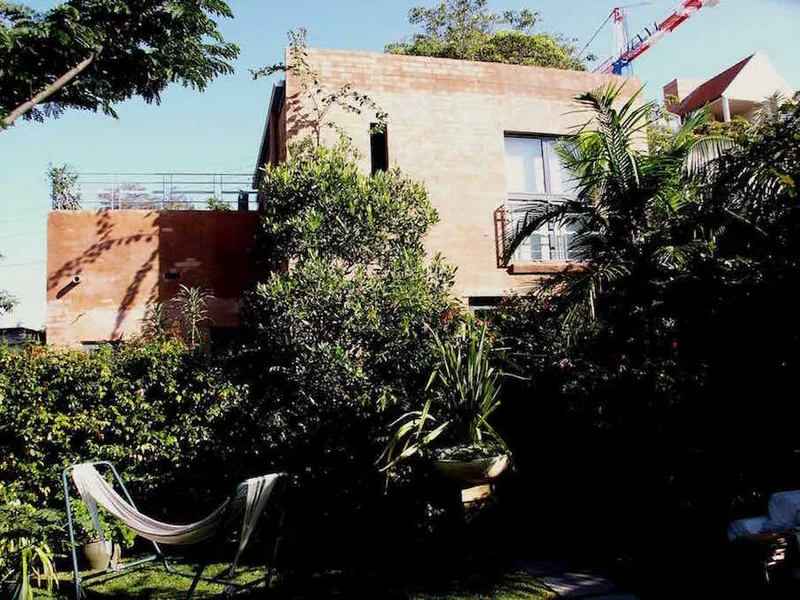

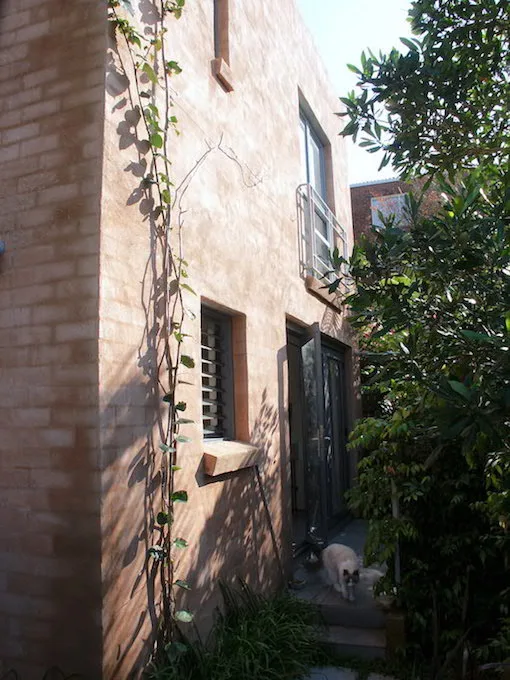

the side of the new rear dwelling

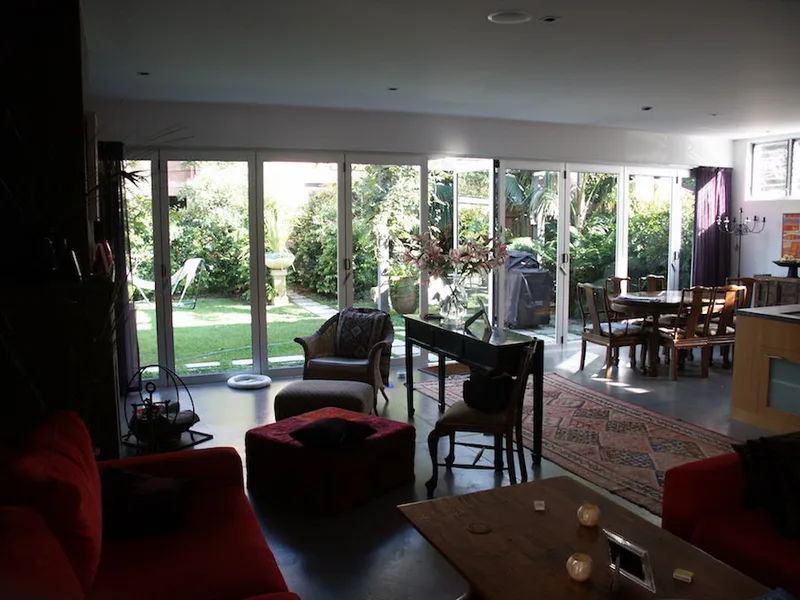

new living room with aluminium bifold doors

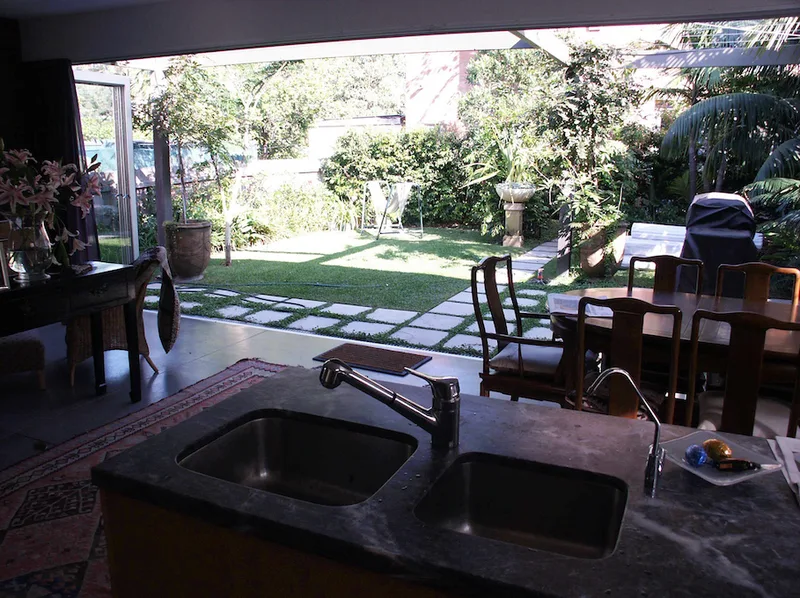

looking from the new kitchen through the large doorway opening

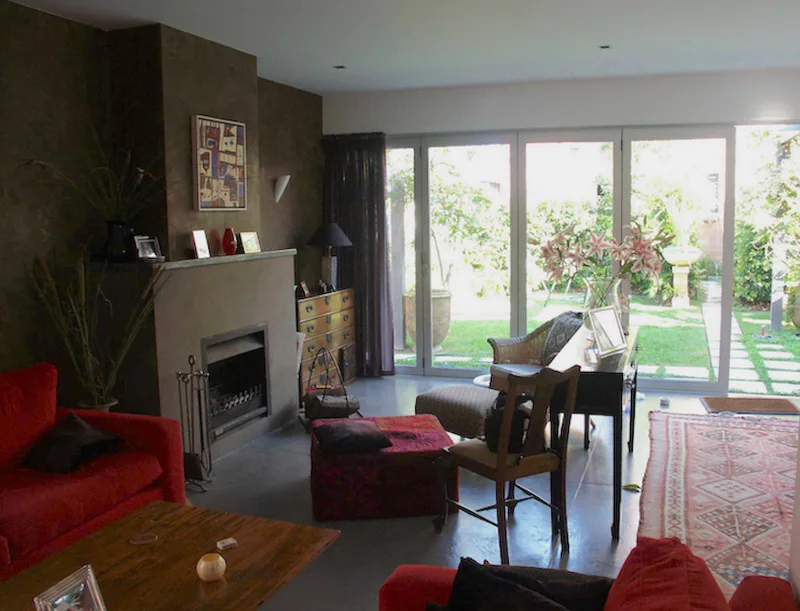

the new living room and fireplace

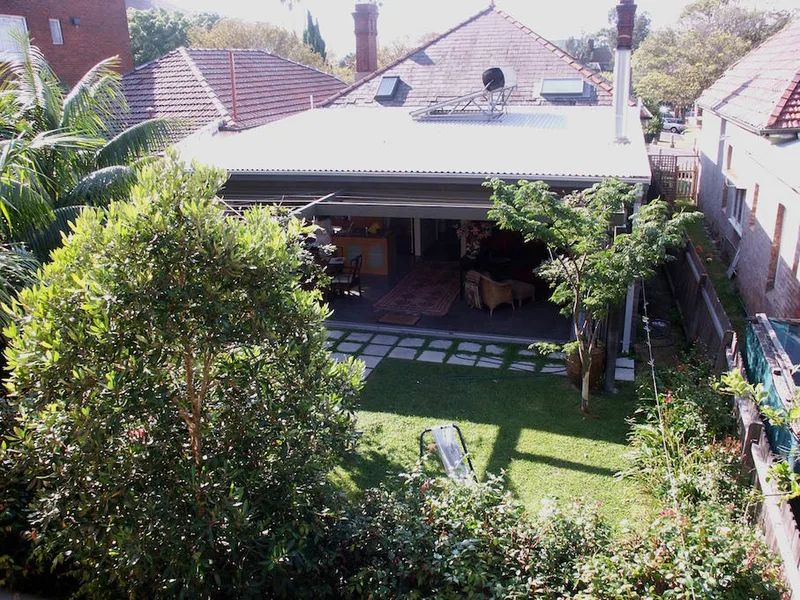

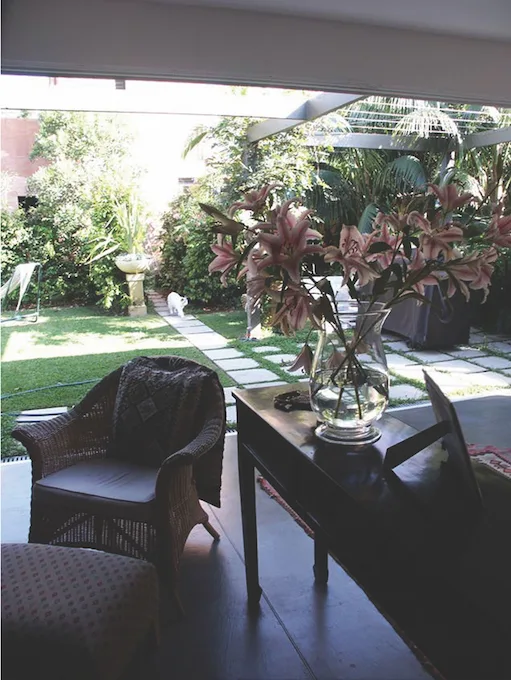

the living areas lead directly to the garden

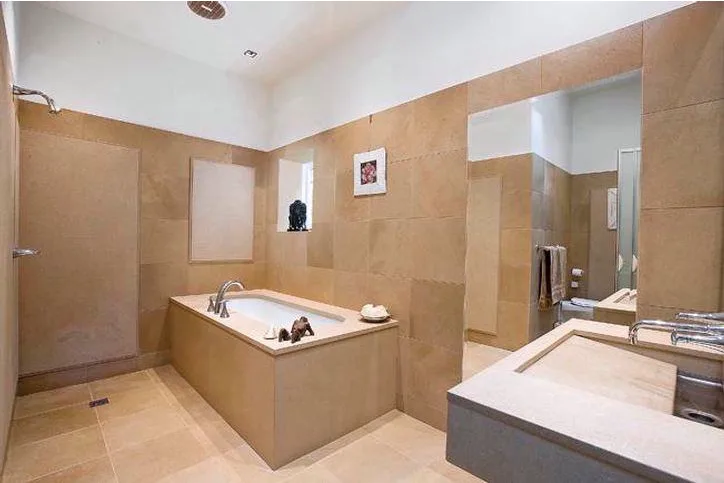

ensuite bathroom in main house

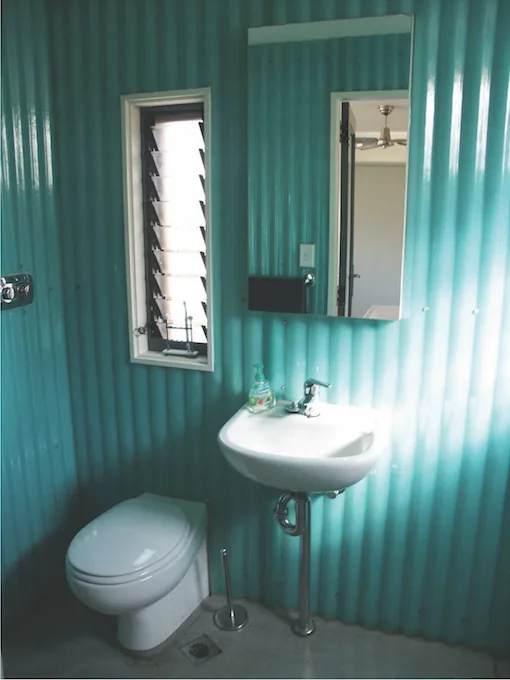

bathroom in rear dwelling

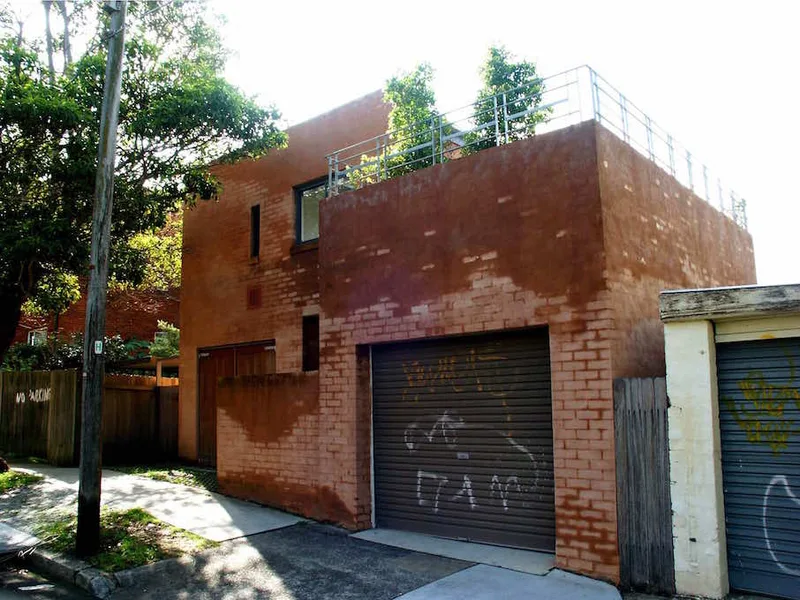

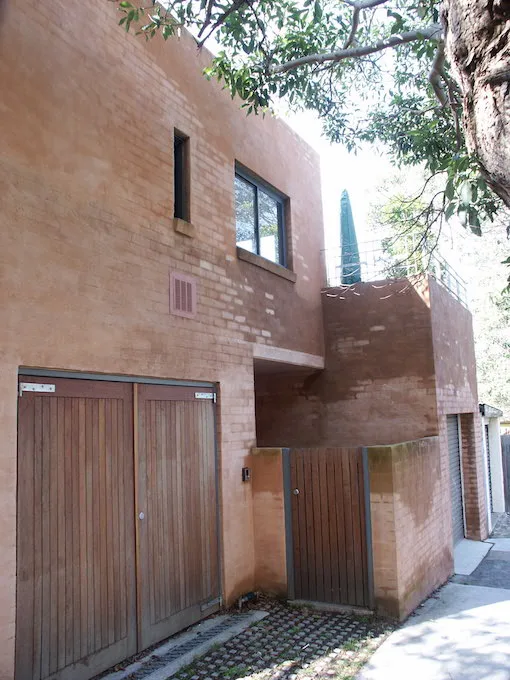

street view of new rear dwelling
independent access to the new rear dwelling

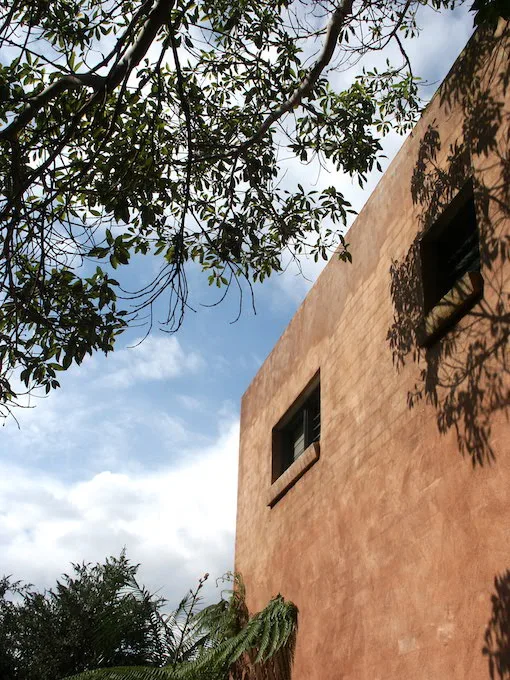

walls of the new rear dwelling bagged with pigmented concrete

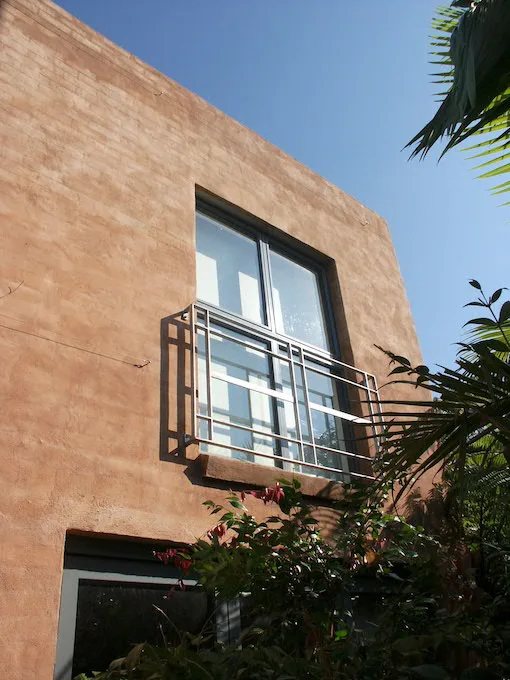

bedroom balcony of new rear dwelling

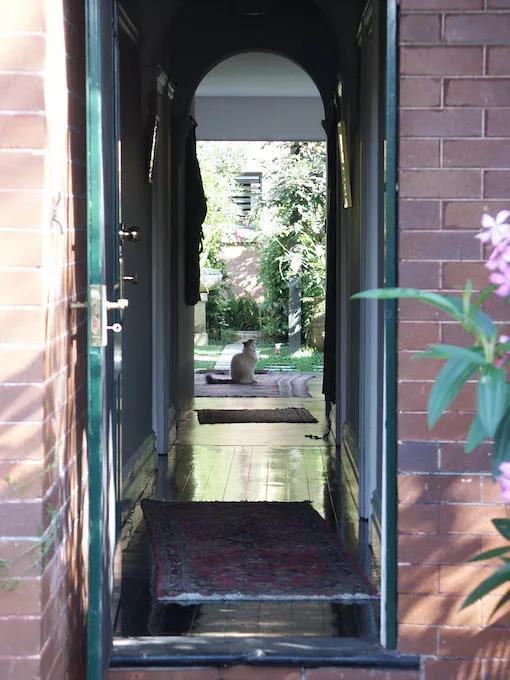

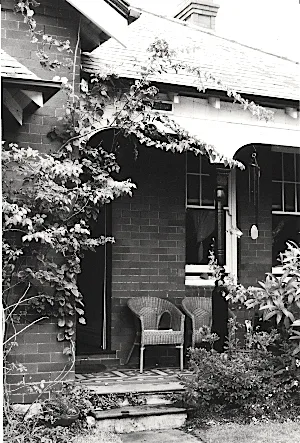

existing front entry to main house

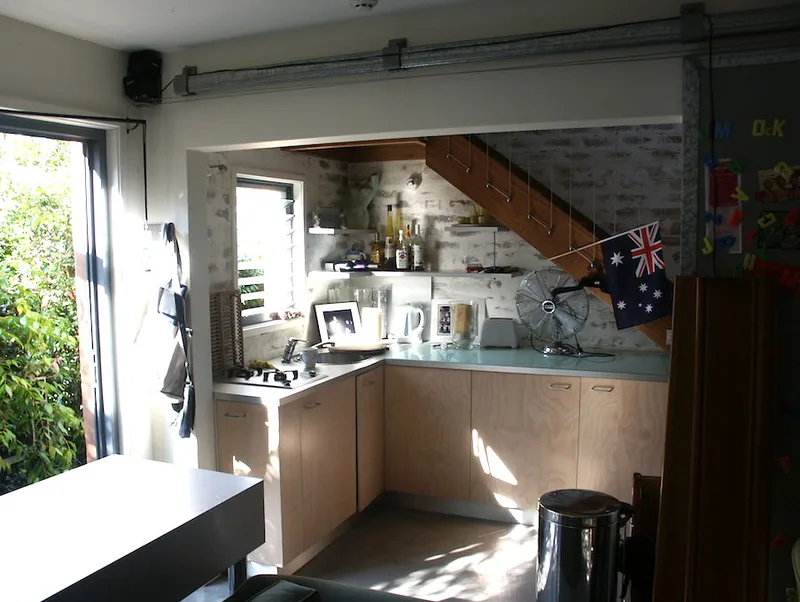

kitchen of new rear dwelling

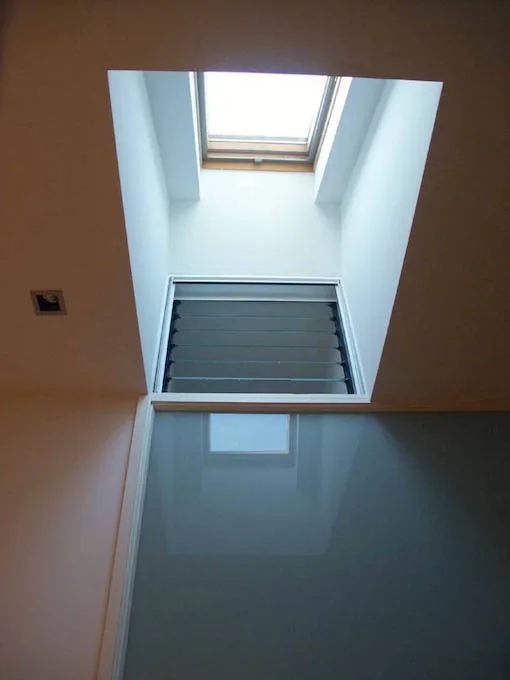

skylight above main house bathroom

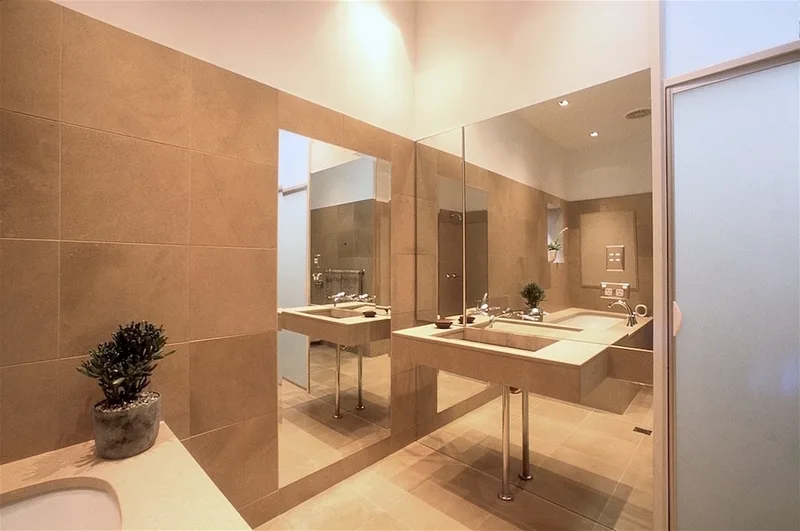

main house ensuite bathroom
Alterations and additions to a federation bungalow, remodeling the rear of the house,  improving the relationship to the garden and adding a new dual occupancy unit at the rear. The clients have a grown up child and wish to accommodate his and their own needs. The proposal focuses on the courtyard defined by the glazed rear of the refurbished old house and  the new dual occupancy unit across the garden which has its own terrace. Living areas of both dwellings open onto the courtyard, with heavy planting used to achieve privacy.

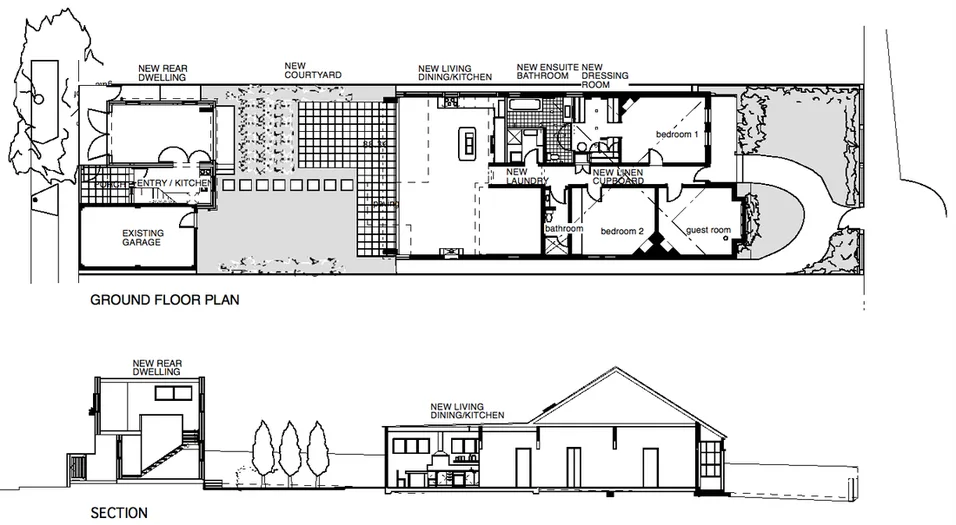

as built plan and section

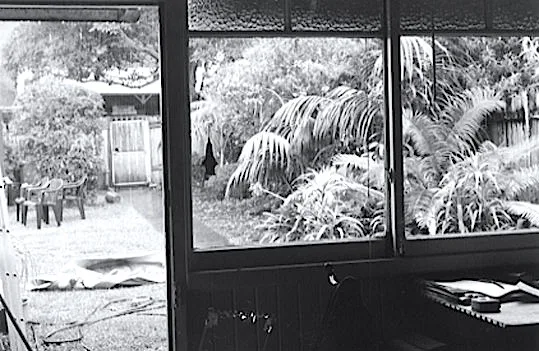

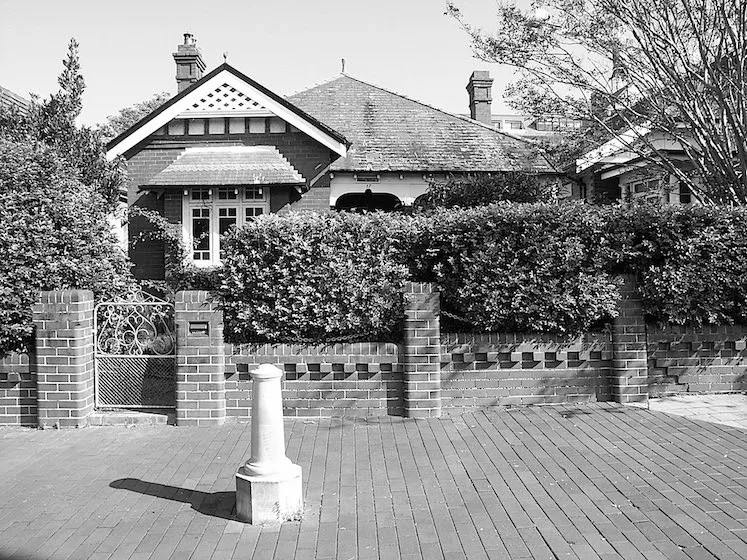

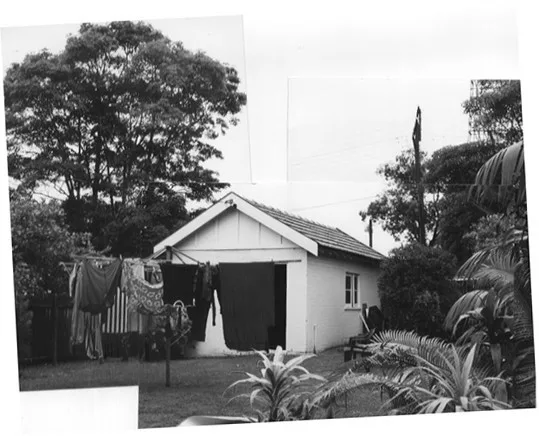

Before

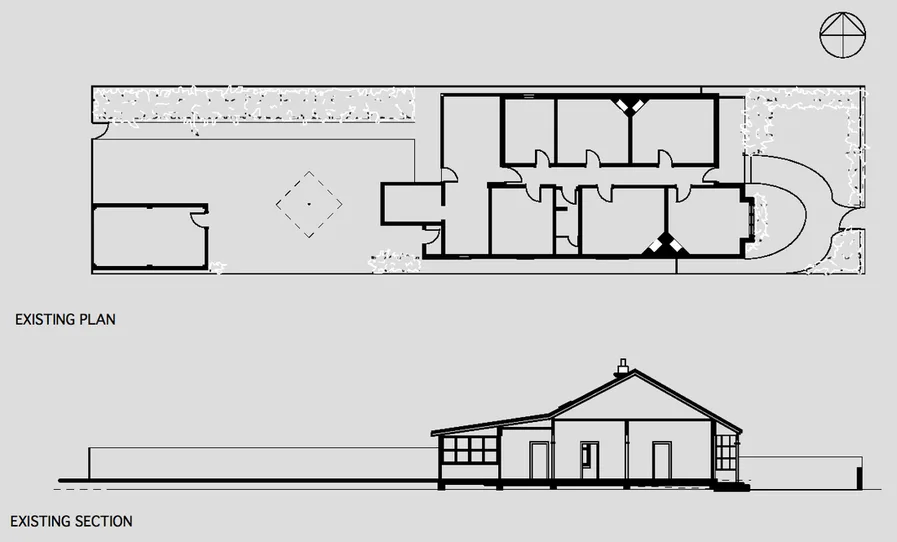

existing house plan and section
